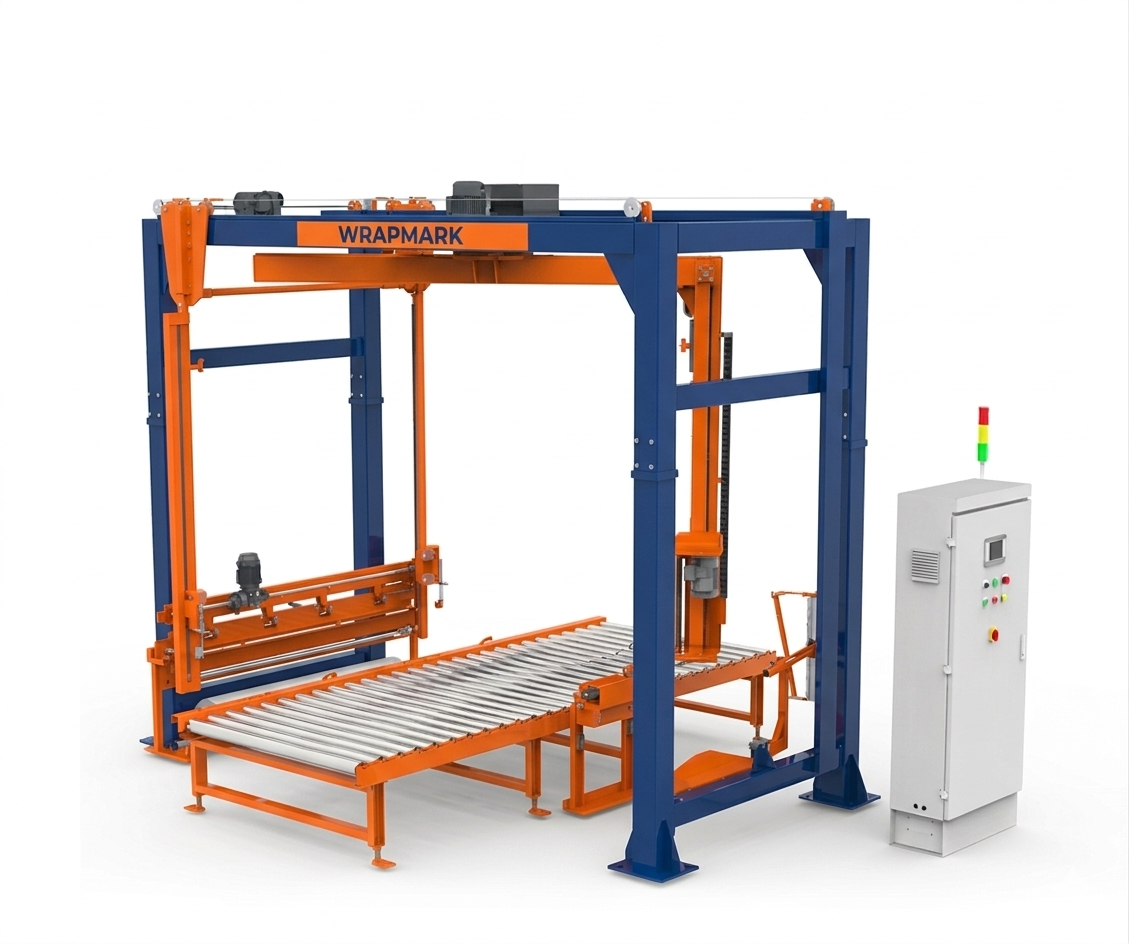

Rotary Arm Wrapping Machine Series: WM D204

Two working mode choices: wrapping, or wrapping with top sheet dispensing.
Automatic apply & cut film.
Powered pre-stretch ratio: 250%.
Automatic wrapping according to pre-set parameters. Touch screen user interface for setting wrap cycles, top/bottom cycles & film tension.
Rotary arm home position, highly sensitive rotary brake system.

Description

Product Parameters
Rotation Speed:	0-20rpm/min，variable	Power:	2.5KW+conveyor line
Pallet Size:	W(500-1200)mm*L(500-1200)mm	Conveyor Height:	450mm
Wrapping Height:	1800mm	Conveyor Speed:	0-12m/min
Pre tensioning ratio:	250%	Machine voltage:	380V,50/60HZ,20A
Carriage Speed:	3m/min	Machine Weight:	1800kg
Top Sheet Pulling Speed:	12m/min	Machine Dimensions:	320032203120mm
Top Sheet Size:	1800mm,length adjustable	Control:	PLC programmable control、touch screen
Cut Method:	heater	Working Method:	fully auto unmanned
Packing Speed:	20-30 pallets/h	Air Peessuce:	0.4-0.7Mpa
