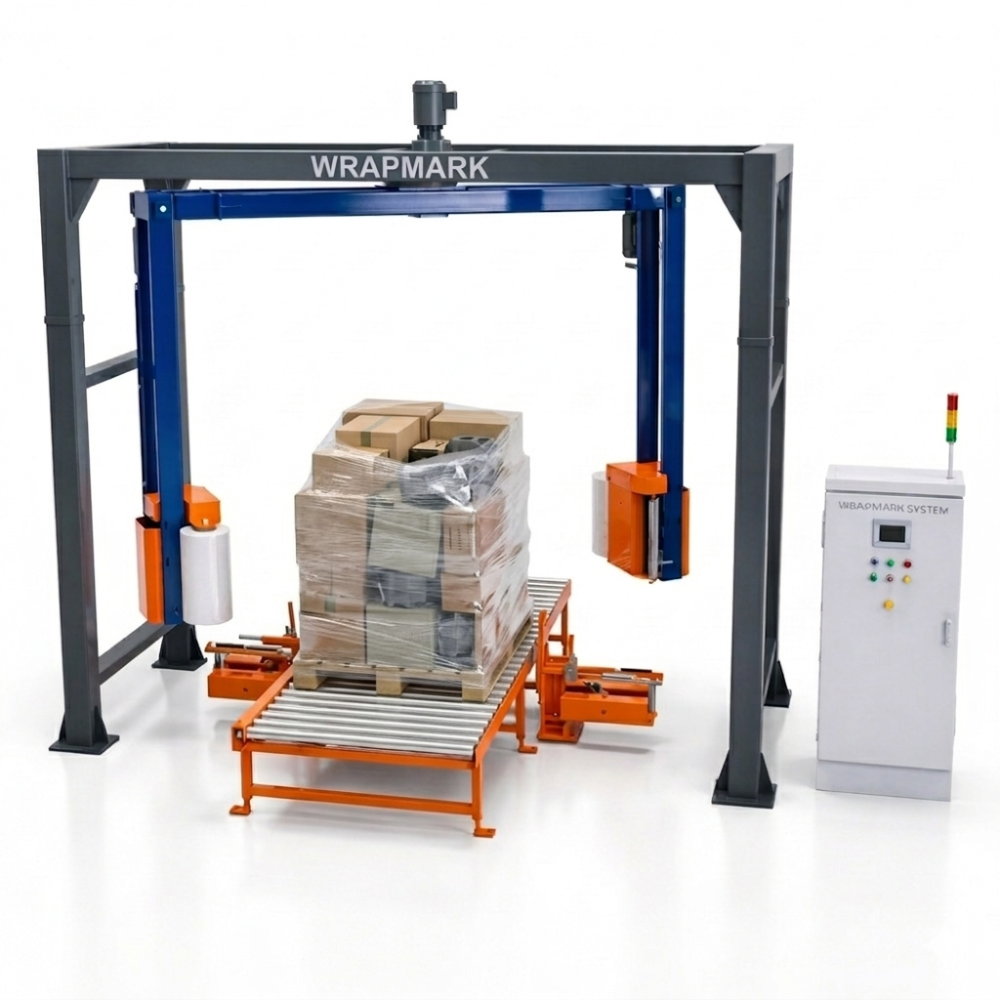

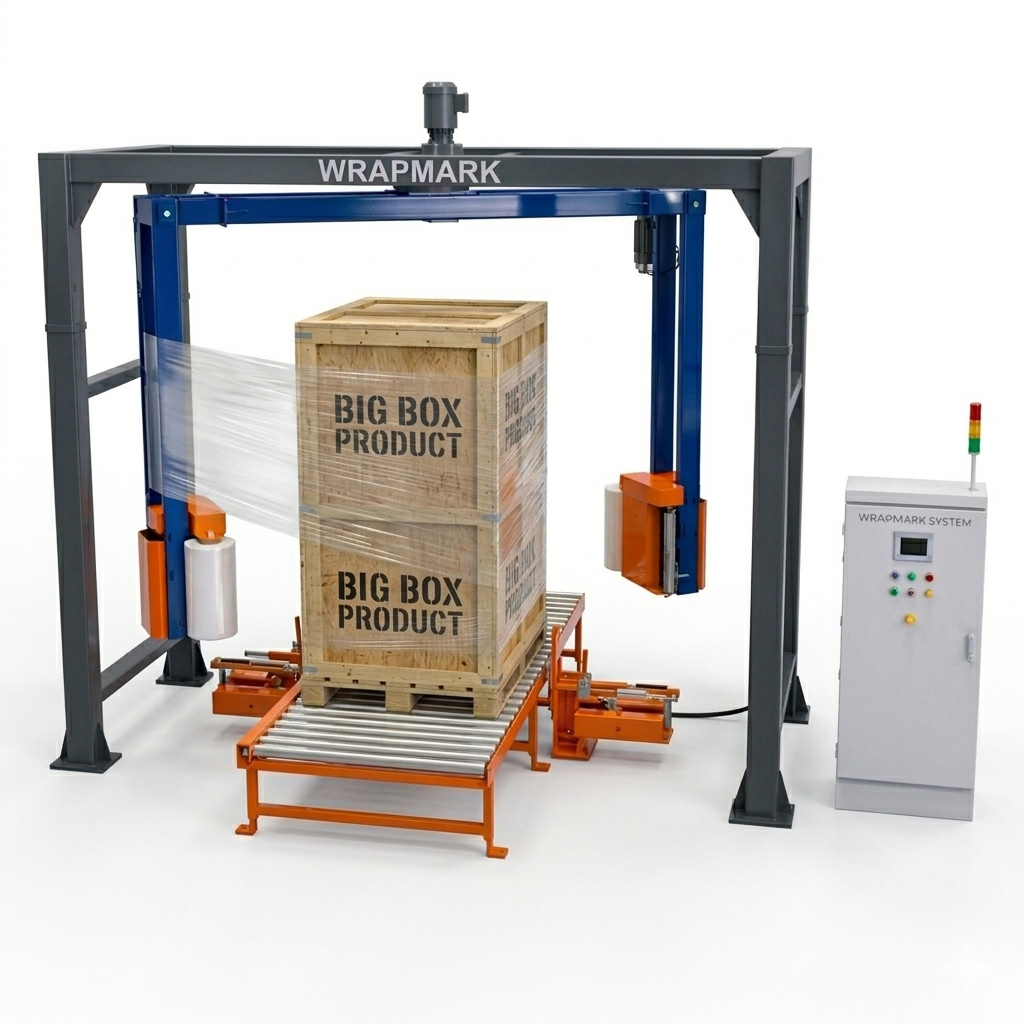

Rotary Arm Wrapping Machine Series: WM H204

· The film wrapping mechanism automatically closes, breaks, and breaks the mucous membrane.

· Dynamic pre stretching membrane frame, pre stretching up to 250%.

· Photoelectric induction, automatic sensing of cargo height, more intelligent.

· Cantilever automatic reset, high sensitivity emergency braking system.

· Slewing bearing transmission, no noise, long service life.

Description

Product Parameters
Rotation Speed:	0-20rpm/min，variable	Power:	2.5KW+conveyor line
Pallet Size:	W(500-1200)mm*L(500-1200)mm	Conveyor Height:	450mm
Wrapping Height:	1800mm	Conveyor Speed:	0-12m/min
Pre tensioning ratio:	250%	Machine voltage:	380V,50/60HZ,20A
Carriage Speed:	3m/min	Machine Weight:	1800kg
Top Sheet Pulling Speed:	12m/min	Machine Dimensions:	320032203120mm
Top Sheet Size:	1800mm,length adjustable	Control:	PLC programmable control、touch screen
Cut Method:	heater	Working Method:	fully auto unmanned
Packing Speed:	20-30 pallets/h	Air Peessuce:	0.4-0.7Mpa
