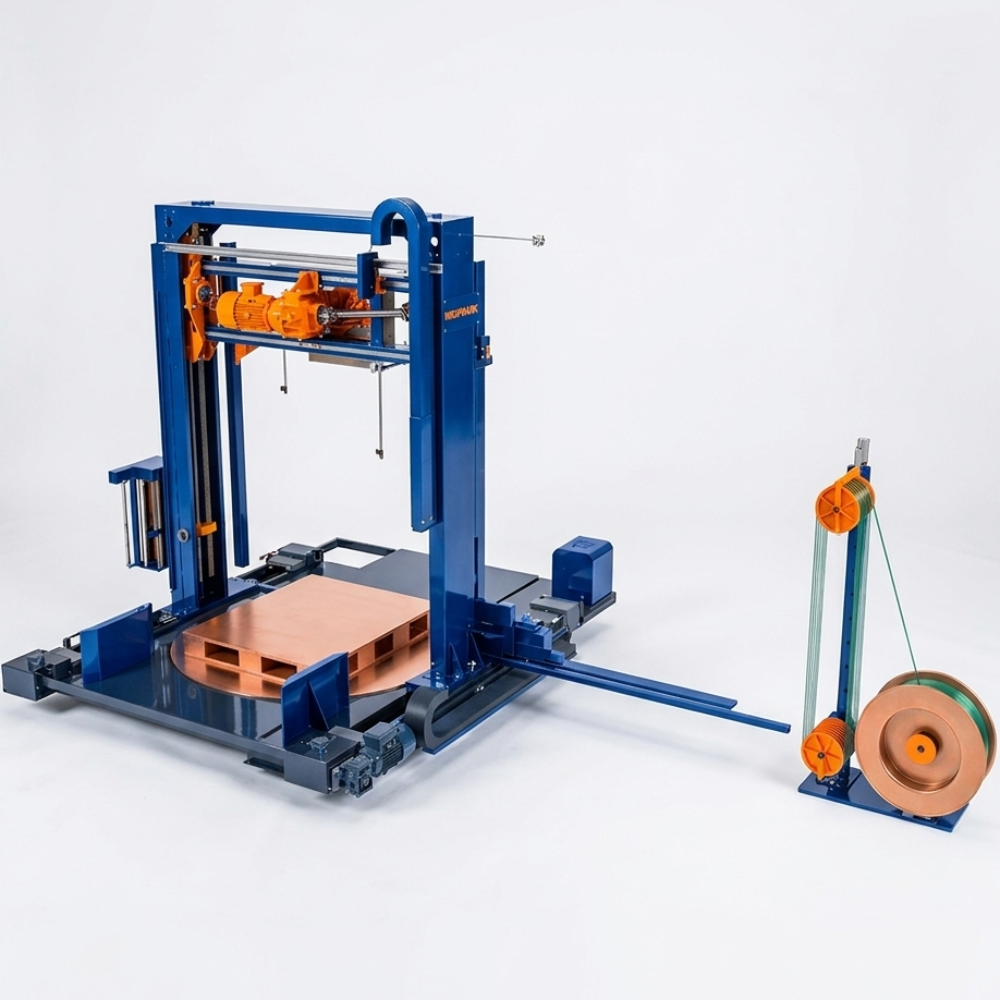

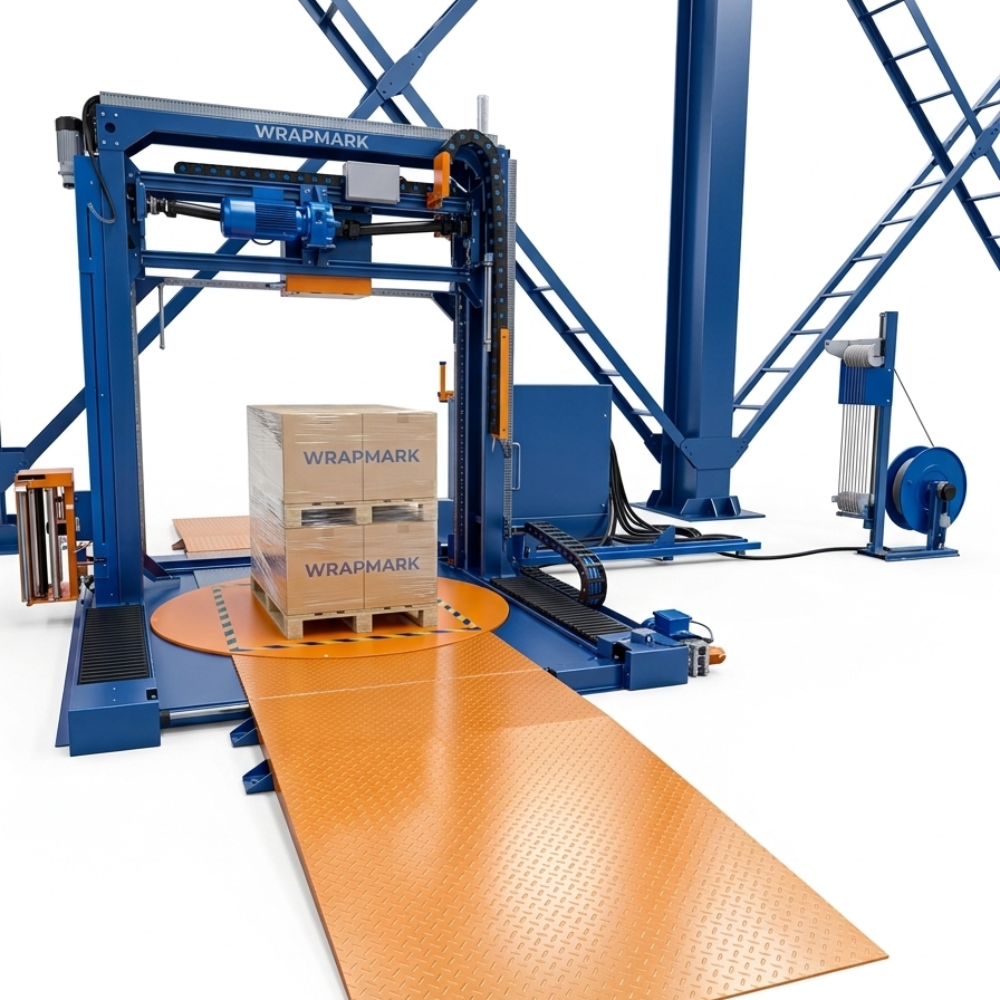

Wrapping and Tape-Applying Machine – Standard Model: WMW001

Wrapping and Tape-Applying Machine - Standard Model: WMW001

Wrapping and Tape-Applying Machine - Standard Model: WMW001 - Image 2

Wrapping and Tape-Applying Machine - Standard Model: WMW001 - Image 3

Wrapping and Tape-Applying Machine - Standard Model: WMW001 - Image 4

Wrapping and Tape-Applying Machine – Standard Model: WMW001.

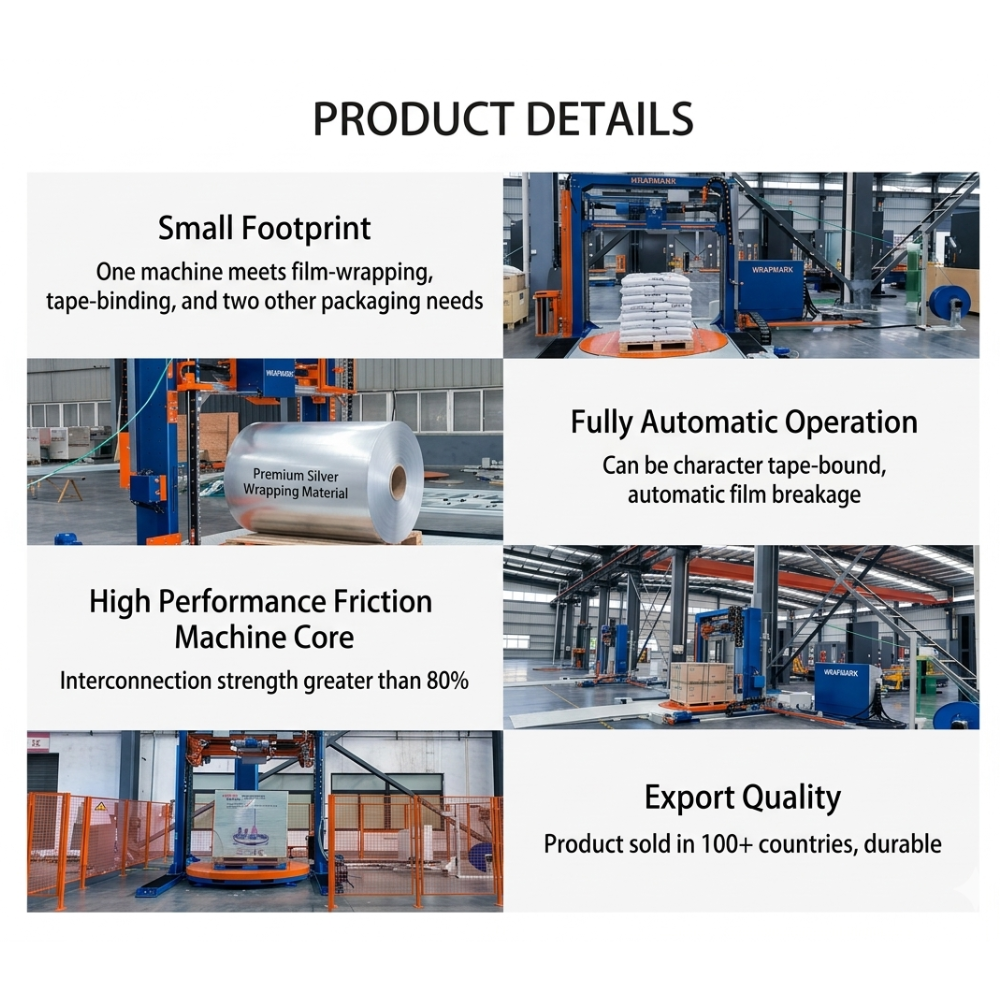

Small footprint, one machine performs two packaging functions.

Optional modes: wrapping, binding, binding and wrapping.

It can achieve tic-tac-toe tape.

Optional automatic film cutting.

Info Product

Category: Fully Automatic Pallet Strapping Machine

Request a Quote

Description

Description

Feature	Specification
Turntable Height	90 mm
Interface Position	Top
Strap Cross-section	60 × 51 mm
Air Pressure	0.5 ~ 0.7 MPa
Sealing Method	Friction Welding
Film Pre-stretch Ratio	1m stretches to 2.5m (250%)
Turntable Speed	15 RPM (Rotations Per Minute)
Machine Power	3 KW
Machine Voltage	380V / 50Hz
Machine Weight	2200 KG
Touch Screen	Siemens
Packing Efficiency	20 ~ 30 Pallets / Hour
Overall Dimensions	2500 × 5500 × 3400 mm
