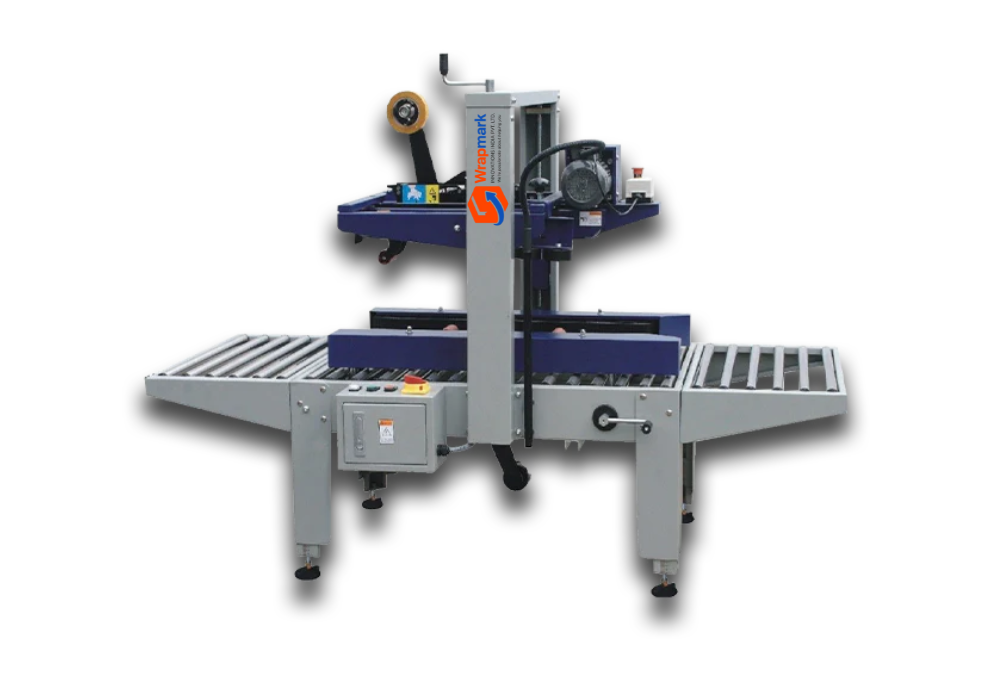

A case sealer with manual input is a particular kind of sealing or taping machine where the operator physically feeds the cardboard boxes into the machine. The phrase “manual entry” denotes that the operator must load the boxes into the machine’s conveyor system or designated area before the machine automatically applies tape or glue to seal the boxes.
Applying an adhesive tape to something, such a box or another surface, is known as taping. Tape is frequently used in the packaging business to seal anything, typically a box or package. Additionally, tape is used to brand, wrap things, convey messages, and deter theft. The ultimate objective of taping is to keep and/or deliver your products without damage, ensuring that they reach your customer in flawless shape. You can apply packaging tape or tape by hand, with a table dispenser, or with a box closure.
| Parameter | Value |
|---|---|
| Dimensions of machine (LxWxH) | 1.1 × 890 × 750 mm |
| Sealing | Bottom and top |
| Consumables | PP/PVC Tape |
| Tape outer roll diameter | 350 mm (max) |
| Tape – core diameter | 76 mm |
| Tape width | 50–75 mm |
| Pack size – length | Min 150 mm (max *) |
| Pack size – width | 120 mm – 480 mm |
| Pack size – height | 120 mm – 480 mm |
| Capacity | 1200 packages / hour |
| Transport | Side – 20 meters / hour |
| Protection | IP 55 |
| Power | 220 V / 50 Hz / 1 phase |
| Weight | 200 Kg |
