The automatic strapping machine Wampag Boxer II-S is equipped with a smaller aggregate and is therefore very suitable for strapping small products or products with an unusual shape, such as PVC pipes.
Key Features:-
Technical Specifications
| Parameter | Value |
|---|---|
| Speed | Up to 55 straps/minute |
| Minimum package size | 40 mm x 30 mm (W x H), round Ø 30 mm |

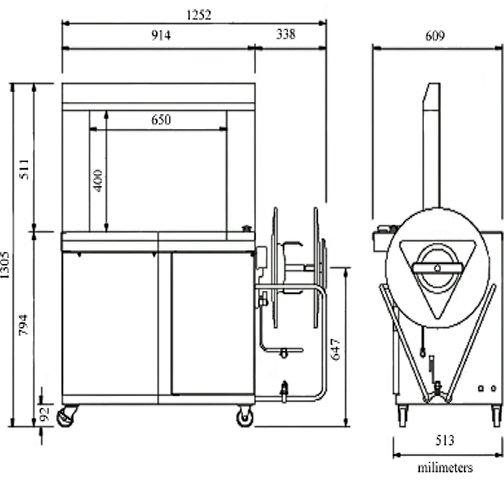

| Arch size | 650 x 450 mm |
| Strapping material | PP band 5, 9 and 12 mm |
| Strap coil | Core Ø 200 mm, Outer Ø 420 mm, Width 190 mm |
| Strap tension | 50,000 – 450 N |
| Strapping | Heat seal |
| Noise | 78 – 85 dB(A) |
| Warm up time | About 30 seconds |
| Power supply | 230 V, 1 phase, 50 Hz, 0.7 kVa |
| Machine weight | approx. 160 kg |
| Colour | RAL 5003 |
