CO2 laser marking system is the most accepted technology due to its versatility, minimal maintenance and nil requirements of consumables.

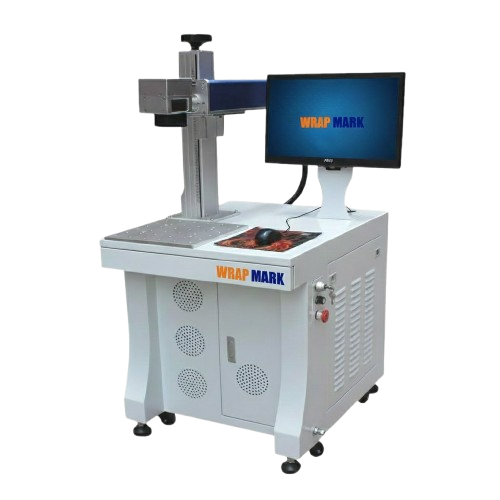

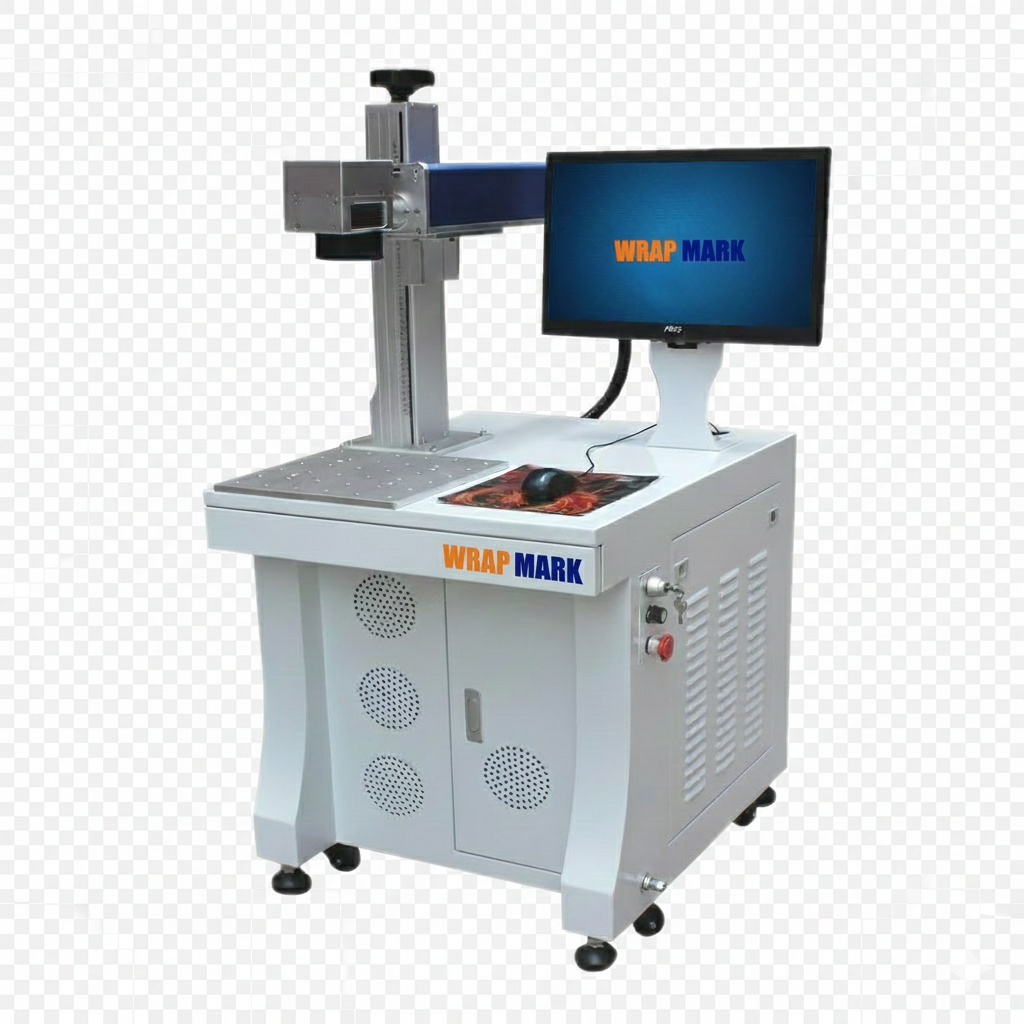

WRAPMARK CLB Series CO2 Laser Marking Machine performs Precise & Consistent Marking in very short cycles.

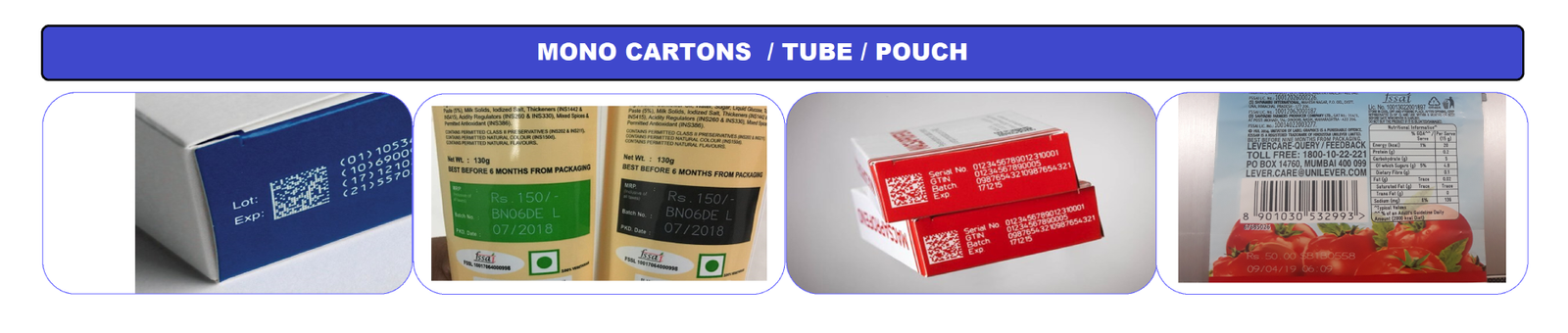

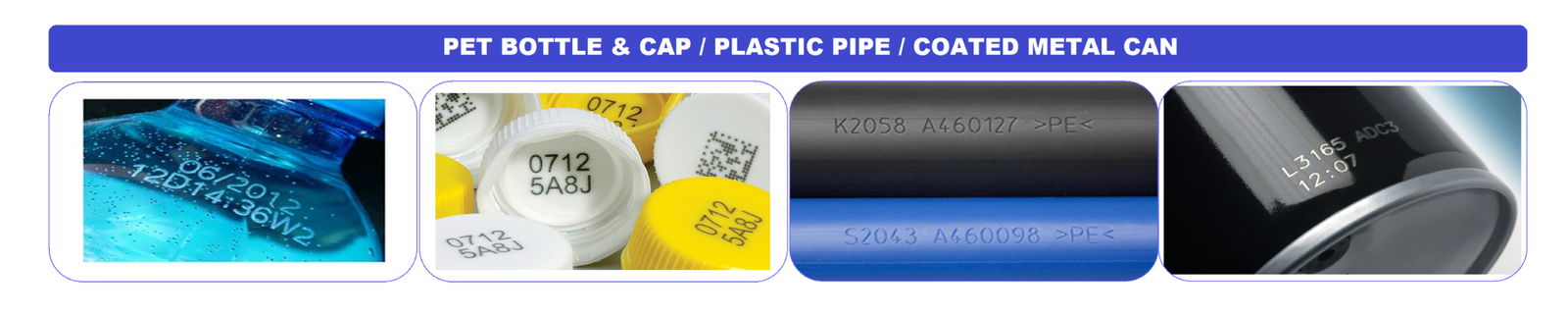

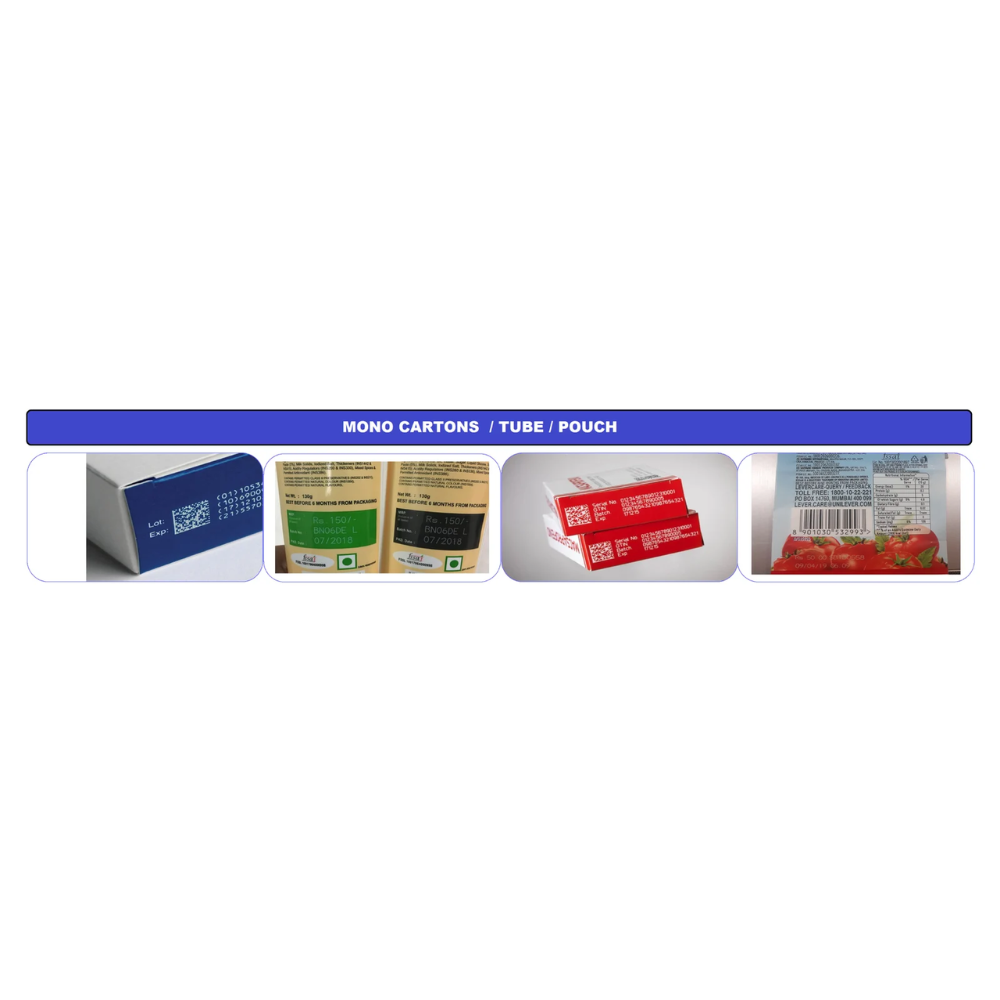

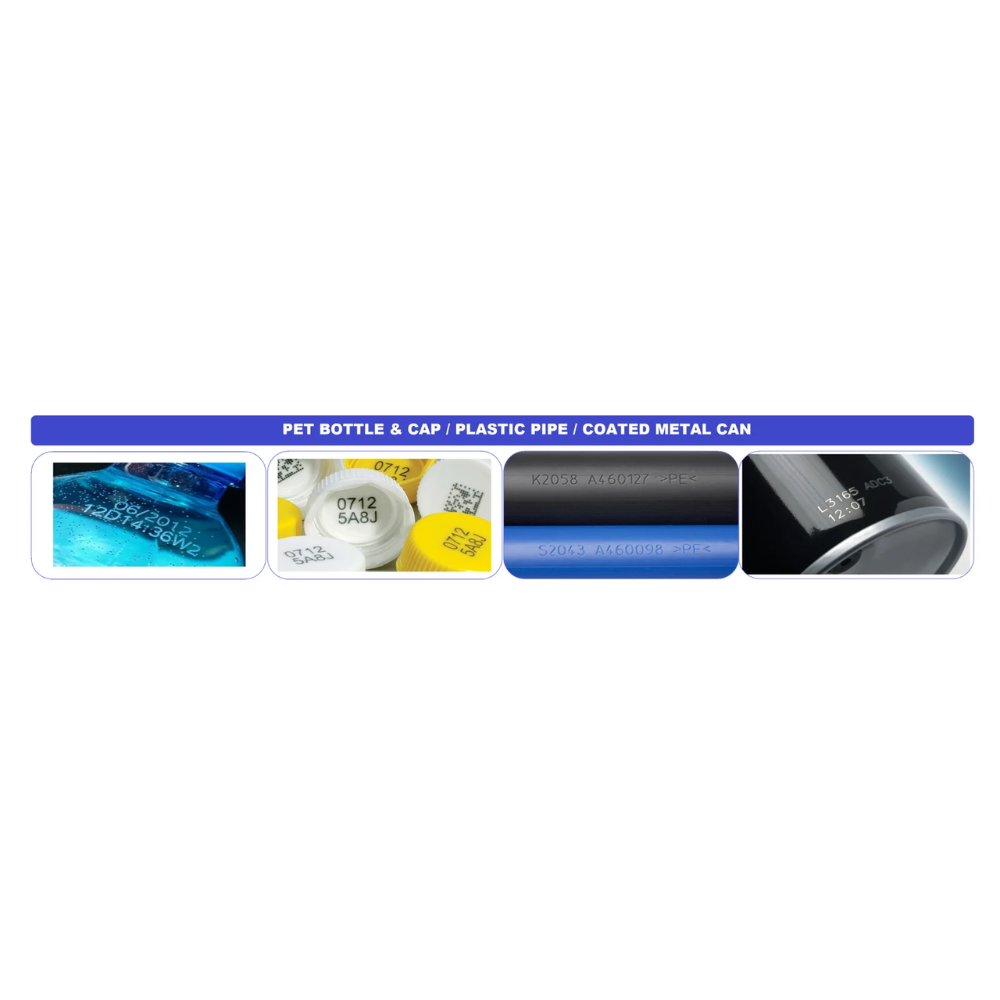

Powerful and versatile CLB Series CO2 laser Markers / Engravers use a 10600nm wavelength in the infrared range, which provides a precise and permanent marking on a wide range of materials such as –

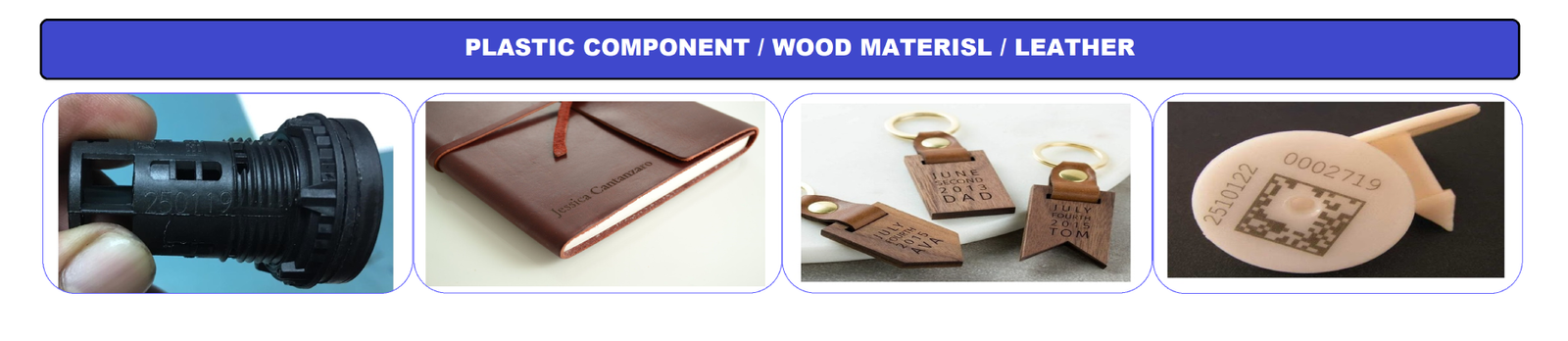

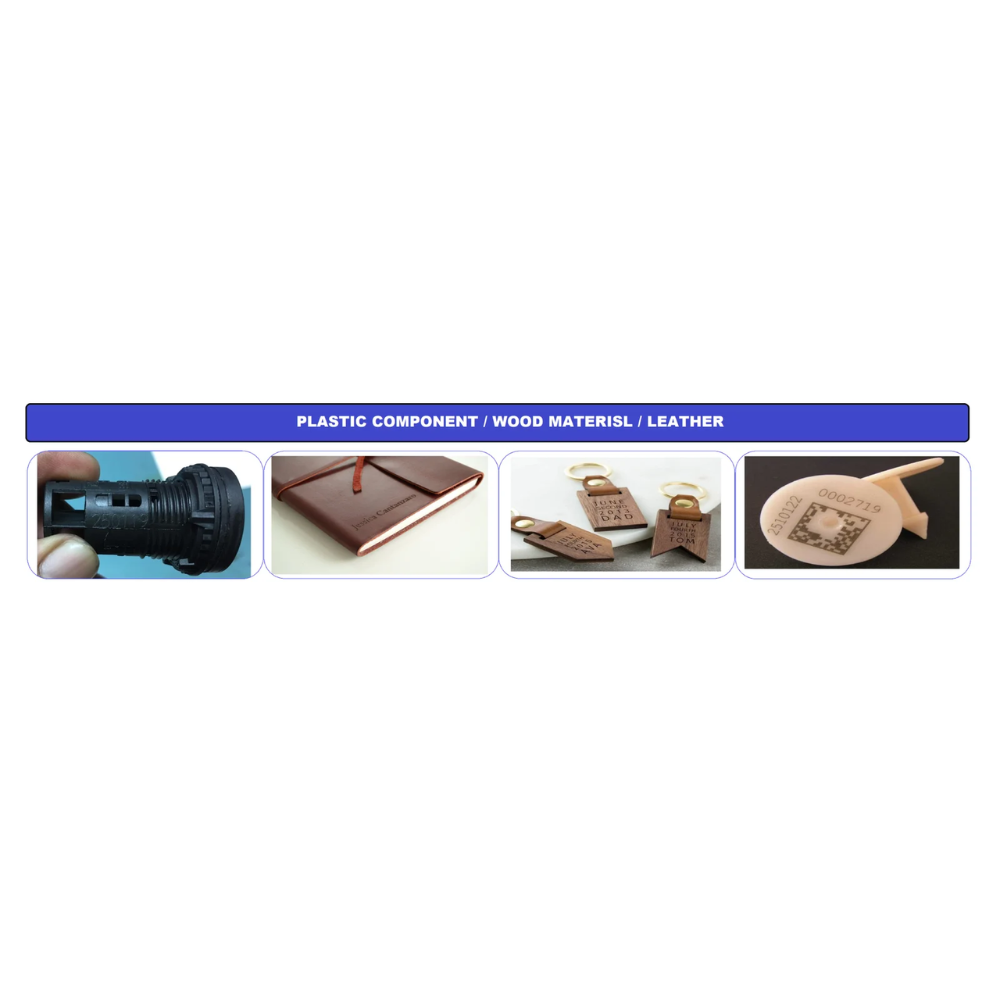

Natural materials (wood, leather, paper, fruits & vegetables)

Transparent material (glass, transparent plastics) and Coated materials (painted surfaces, anodized aluminium).

High Performance software application that extends a smooth & fully automatic production flow.

WrapMark introduce range of systems in CLB Series considering industrial variable application –

Industrial Table enclosed system for Manual Marking
Fly Marking System for online marking on product surface.

Unique Feature –

Patented Metal Tube design technology to deliver high power during life cycle
High power 1.06µm laser beam for Precise marking
Over 50,000 hours of reliable, maintenance-free performance
High Speed QR code / 2D Bar Code marking
Compatibility with all PLCs brands, ensure quick and cost-effective integration
Protection against Dust & Machine safety (Shutter, alarms & controls)

Benefits –

Black Pearl CLB series can mark on range of Organic & Coated surfaces with no contact
Robust design and high-quality optical components guarantee high strength and low maintenance
Low use of consumables gives low recurring cost
Permanent & Consistent Marking that reduces traceability issue
High Precision & High Speed marking increase productivity

Info Product

Category: Laser Marking Systems

Request a Quote

Description

Description

Technical Specification
Model Available	WM 06BLC Fly/WM 03BLC Fly/WM 05BLC Fly
Laser Power	10W / 30W / 50W
Technology	Metal Tube Design
Wavelength	1.06μm
Beam Quality	< 2 (M2)
Marking Area	100 * 100 mm /150 * 150 mm /200*200mm Optional
Marking Depth	0.01 – 0.1 mm Depend on surface material
Max marking speed	7000 mm / second or 300 Character /sec.
Character Details	Height – 0.2mm
Repetition Accuracy	± 0.003 mm
Cooling Mode	Air cooling
Operating Temperature	15 °C – 45 °C
Life of Laser Module	> 50000Hrs
Power Requirement	220V / single phase / 50Hz / < 600W
Design Software	JCZ EZCAD 2.14 PROFESSIONAL FIBER LASER MARKING SOFTWARE
Support File & Format	PLT, DXF, BMP, JPG, JPEG ,CAD, CDR, DWG
Support OS	WINDOWS XP, 7 , 8 ,10
Communication	Serial Communication RS232 , USB(X3)
Optional	Fume Extraction , Rotary Chuck , Class I enclosure, Rotary Indexing, Conveyor attachment , On the Fly marking
CERTIFICATE	ISO, CE, FDA
