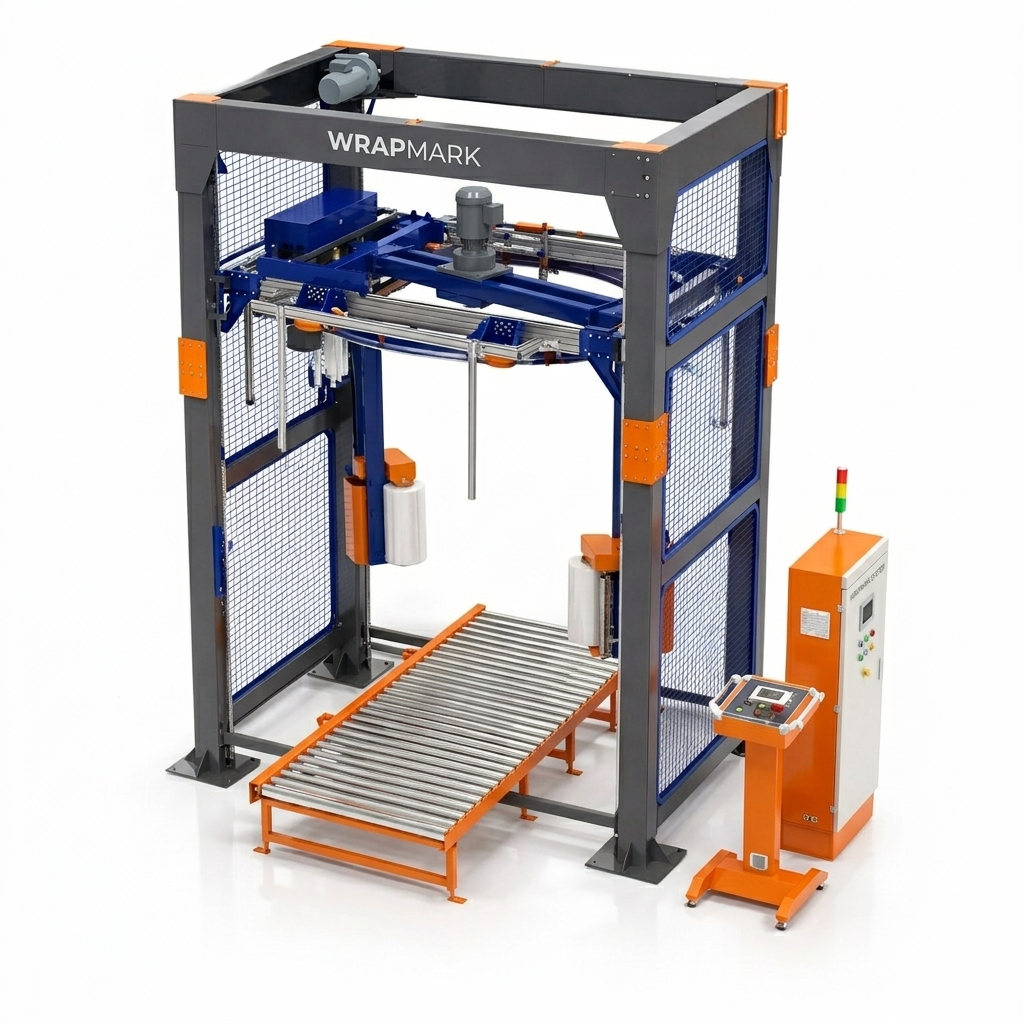

High Speed Ring Wrapping Machine Series: WM 205

· More stable operation, full servo control for rising, falling, rotating, and film discharging.

· More economical use, constanttension film release, fixed point quantitative winding.

· Safer operation, increased proactive security protection, and improved passive security performance.

· More convenient operation, visualman-machine interface, simple and understandable operation.

Description

Product Parameters
Maximum wrapping speed:	45/60/90loads/hour	Inverter:	SIEMENS
Maximum wrapping height:	3000MM	Voltage:	380v/60hz
Rotating speed:	1..5s per circle	Working Mode:	auto
Ring size:	2200MM	Weight:	4000kg
Power:	6.7KW	Dimensions:	317429944005mm
Carriage Speed:	20m/min	Machine weight:	2T

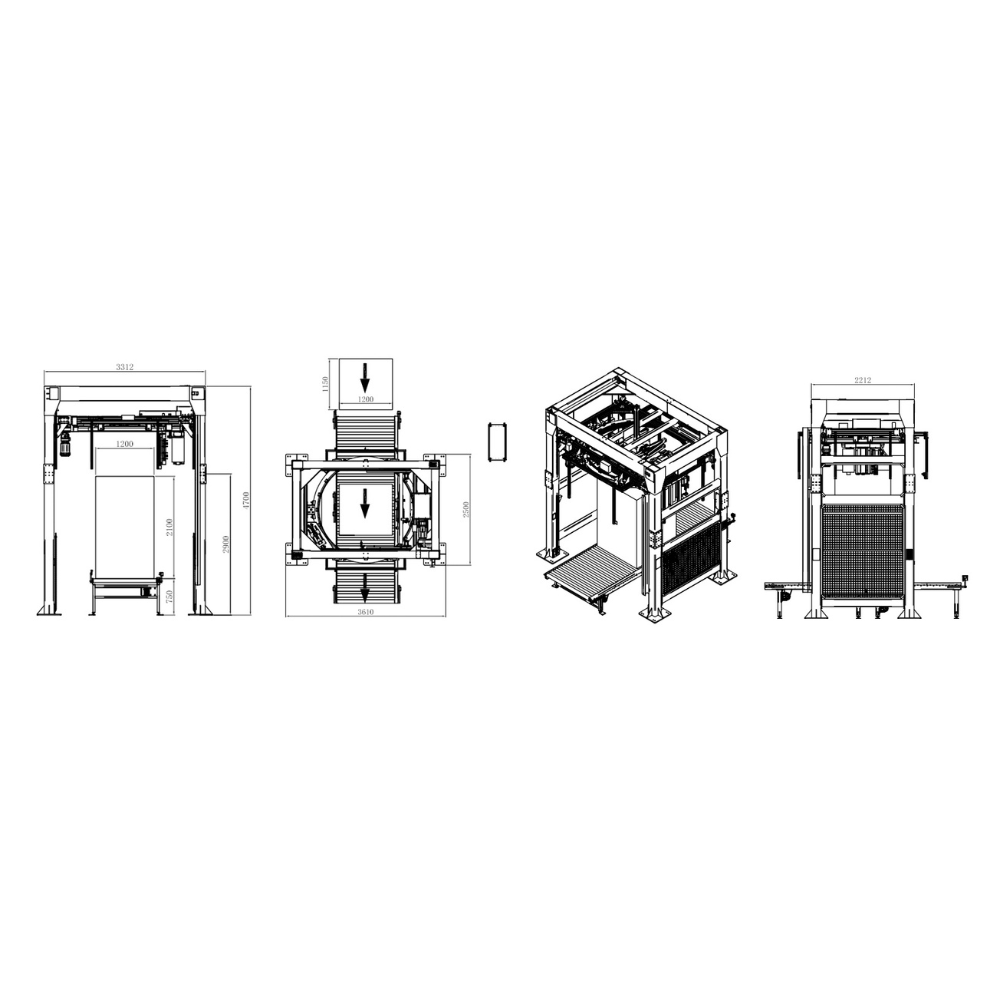

FILM&CLAMP CUT:	automatic(heat type)	Machine dimensions:	L3610*W2500 The height is related to the height of the goods and the height of the line body
Standard pre-stretch:	2.5	Pressing stroke:	0-1600mm
PLC:	SIEMENS	Top pressing method:	Pneumatic pressure top
Touch screen:	SIEMENS
